Conveyor Belt Fasteners

No results

Downloads

Grapas Clipper Hooks Grapas Clipper Hooks Spanish Grapas Miniprestol Grapas Miniprestol Spanish Grapas Plategrip Grapas Plategrip Spanish Grapas Staplegrip Grapas Staplegrip Spanish Grapas Steelgrip Grapas Steelgrip Spanish Sistema de grapas Sistema de grapas Spanish
Request more info

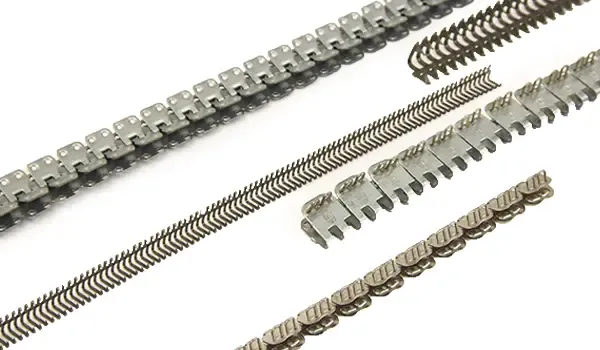

Types and characteristics of staples

Clip staples
  • Quick and economical installation, low-profile staples, double staggered grip that does not damage the belt casing, operates quickly and smoothly with conveyor components. Wide variety of cable diameters, materials, tip lengths, bars and strip lengths with various installation methods.

Miniprestol Staples
  • The Miniprestol staple family (RIVET-FASTENERS) is large and diverse. It is used to join belts from 1 to 18 mm with roller diameters from 20 to 400 mm without the need for expensive tools. Installation on all types of belts, available in FDA/USDA non-magnetic stainless steel, copper or stainless steel rivets, good compression on the belt and staple closure. In galvanised steel, stainless steel or non-magnetic stainless steel.

Plategrip Clamps
  • Plategrip staples are designed to meet the demands of the most difficult material handling applications. The solid plate staples offer a fine-free joint and superior grip. Their strength comes from a combination of compression of the top and bottom plates and high-tension resistance screws. Teeth specially shaped to penetrate the belt casing without damaging the fibres.

R5 Riv-Nail Staples
  • Ideal for belts with solid PVC and rubber fabric and for worn belts that do not fit vulcanised splices, the R5 RIV-NAIL Staple system provides high performance, durability and easy installation, increasing belt availability. Design reduces exposure to blade cleaners, rubber skirts and return rollers.

Staplegrip Staples
  • With pre-inserted staples designed in one-piece strips, Staplegrip Staples make splicing quick and easy. It is a strong, impact- and abrasion-resistant splice. The front edge of the staple is bevelled, leaving a smooth surface for conveyor components.

Steelgrip Clamps
  • For systems with 1" (25 mm) diameter pulleys, Steelgrip clamps offer a low-profile, economical splice that can be installed with a hammer. One-piece design provides uniform tension across the width of the belt. Also designed to prevent parts from loosening from the belt due to wear. No special tools are required for installation; apply with a hammer.
