Description

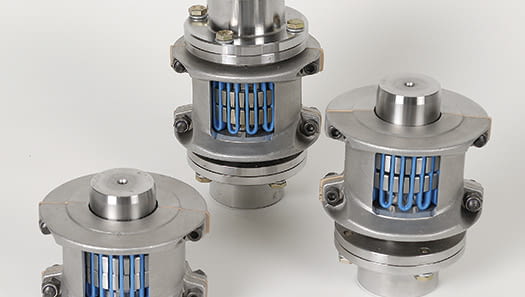

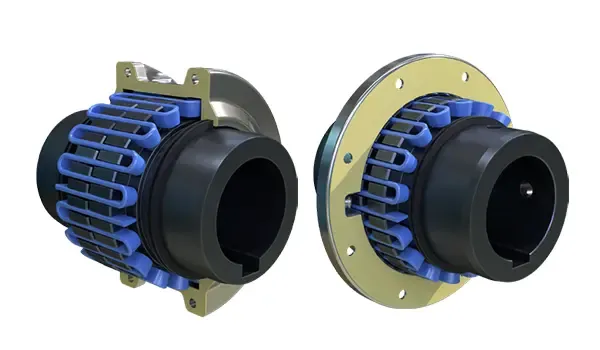

The grid coupling are flexible couplings that reduces vibration by as much as 30% and cushions shock loads to safeguard your driving and driven equipment. The flexible nature of the spring-like grid absorbs impact energy by spreading it out over time, thus reducing the magnitude of the peak loads. This is possible because of the progressive contact that occurs between the curved profile of the hub teeth and the flexible grid. Therefore, as the load increases, more of the tooth comes into contact with the grid, thus supplying superior protection and supreme performance.

Grid couplings are designed for versatility. Common hubs and grids are used within a given size range for both horizontal and vertical split cover models. Grid installation and replacement is a "snap" at only a fraction of the complete coupling cost.

Top Quality Manufacturing - Made from high tensile alloy steel, the grid spring is carefully formed to shape, then hardened and tempered under controlled conditions. Next, the grids are shot-peened, compressing the surface molecules and leaving a residually stressed surface. This process creates a stronger surface in compression.

Any load applied on the coupling in operation must first surmount the compressive forces created by peening before the tensile stress reaches the grid. This provides a dramatic increase in rating over other coupling types, increases reserve strength for longer life and may permit selection of a smaller coupling, thus reducing cost.

Horizontal cover

Ideal for limited space
Allows easy access to grid
Well-suited for reversing service
Manufactured from die-cast aluminum

Vertical cover

Ideal for higher operational speeds (higher RPM limit)
Manufactured from stamped steel

Spacer style

Ideal for pump applications; drop-out section allows for pump servicing
Used only with horizontally split cover
Stock for sizes 1020-1090
