Description

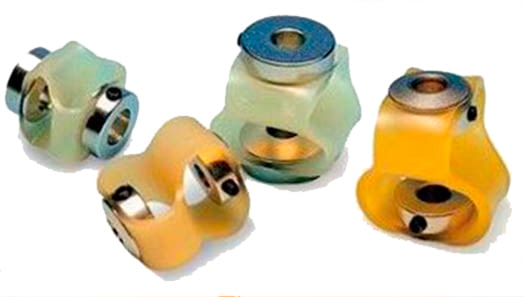

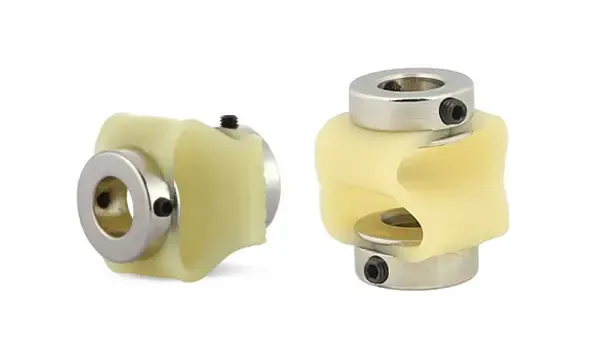

The double loop-shaped, thermoplastic compensating element of the coupling HYTREL

The reverse bending strength of the flexible material and the cardan-like shaping of the power transmitter, this development is the ingenious, technical solution for shaft displacement problems in motive power engineering and in measurement and control techniques.

The one-piece coupling works frictionless, wearless and silently, and without any troubling effects.

Main features

  • High torsional rigidity with optimal beeding and traction or thrust flexibility
  • Simple constructional principle
  • One-piece design - without play, friction, wear and structure vibrations
  • Simple fitting, no extra machining of the shaft journals
  • Minimum fitting volume, radially and axially
  • Extremely high, permissible displacement error values: angular approx.Ø ±15º, radial approx. Ø ± 3mm and axial approx. 10 to 20 mm.
  • High operational reliability in the temperature range between -40ºC and +100ºC


Equivalent to the paguflex coupling.
