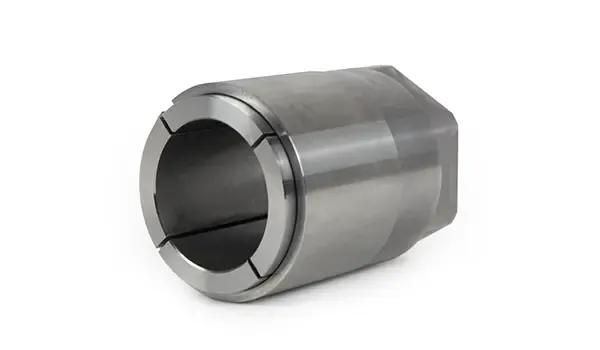

LD Bushings

No results

Downloads

Coupling LD Bushings Coupling LD Bushings Spanish
Request more info

Description

From gears to cams, timing belt sprockets to conveyor rolls, climate control fan hubs to grinding wheels, the extensive range of Keyless Bushings - all with a single locking nut - offers easy to use options for mounting and adjusting position sensitive, zero backlash drive components and accessories.

Main features

  • Easy to assemble and disassemble, with a single nut rotation operation for installation, unlike the multi-nut system.
  • Easy positioning, it is self-centering as its axial length is greater than the outer diameter, which allows for greater machining tolerance.
  • Overload protection: due to its design, the expansion force is perpendicular to the shaft, which facilitates a regular tightening torque.
  • Unlimited applications: the LD system is suitable for any fastening of elements on a shaft and is not affected by temperatures ranging from -30°C to 200°C.

Machined diameters: 5, 6, 8, 9, 10, 11, 12, 14, 15, 16, 18, 19, 20, 22, 24, 25, 28, 30, 32, 34, 35, 36, 38, 40, 42, 45, 48, 50, 55, 60, 65, 70, 75

Equivalent to ‘Trantorque bushings’
